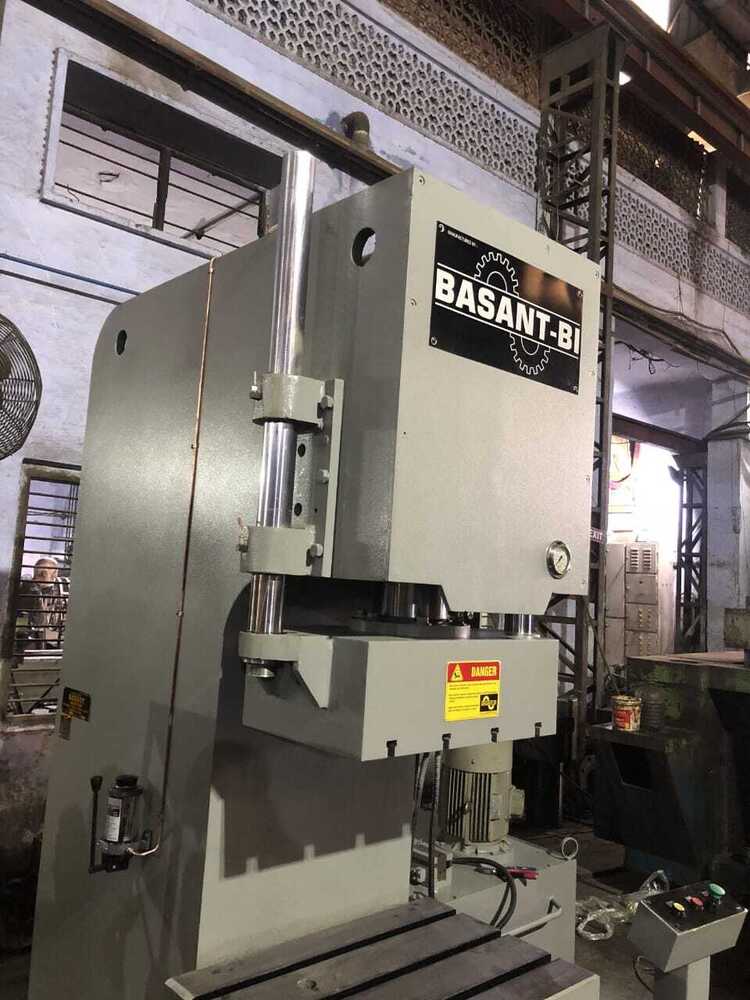

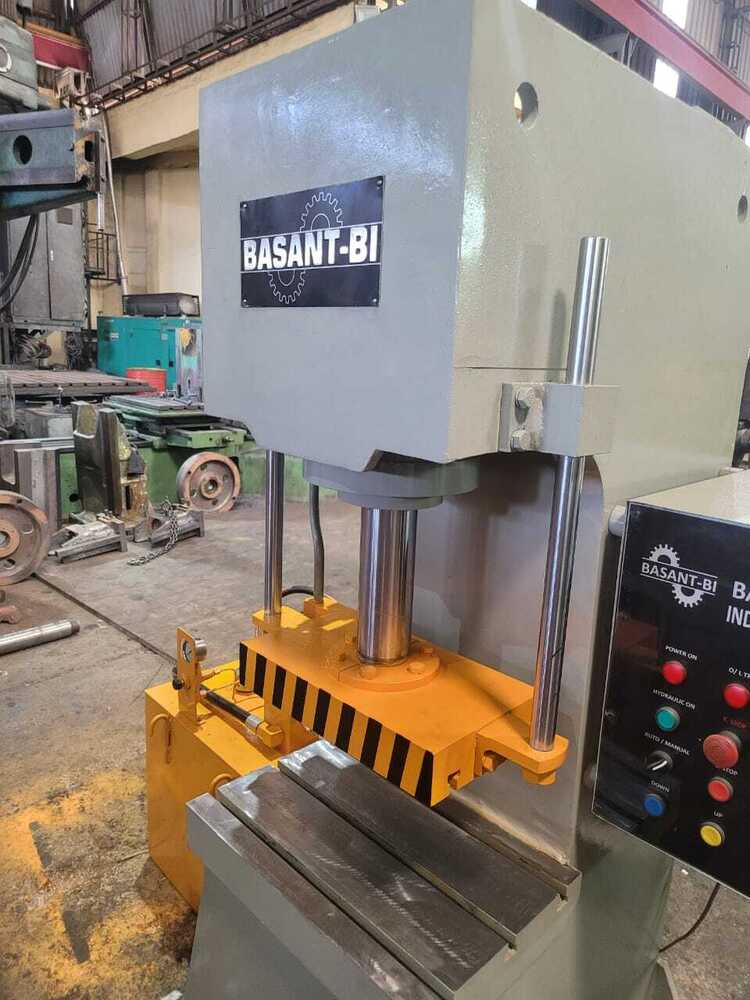

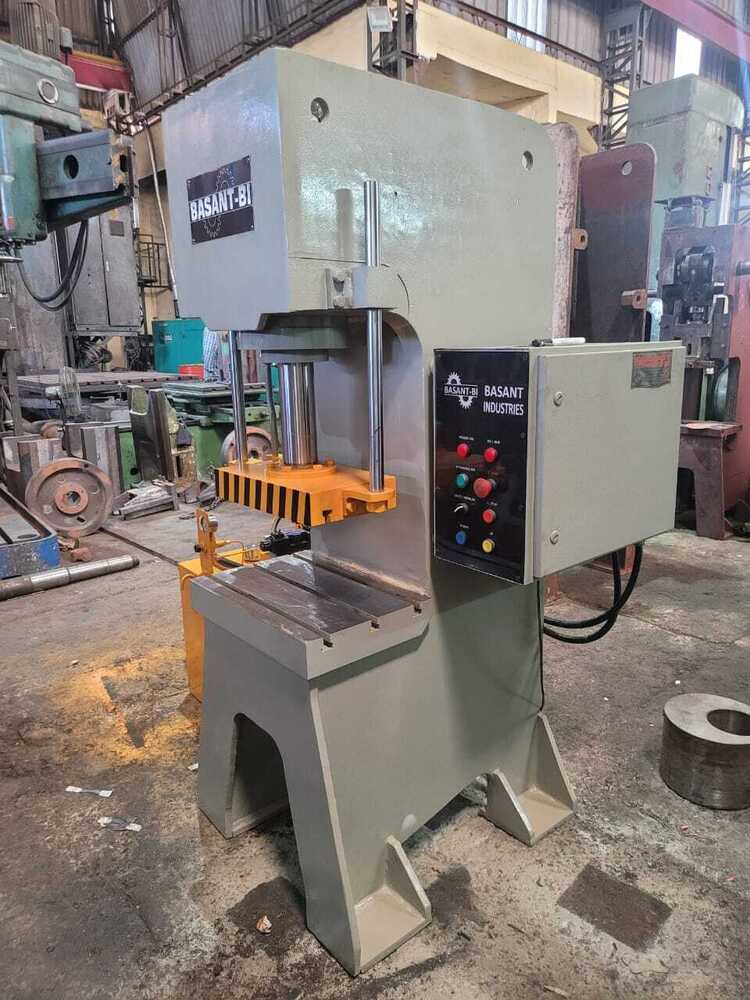

C Frame Hydraulic Press

Name: C Frame Hydraulic Press
Brand: BASANT INDUSTRIES
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

C Frame Hydraulic Press Specification

Material
Metal

Size
Different Available

Product Type
C Frame Hydraulic Press

Application
Industrial

Warranty
Yes

C Frame Hydraulic Press Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA)

Supply Ability
10 Units Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About C Frame Hydraulic Press

Specification

TYPE	SERIES	CS 25	CS 35	CS 45	CS 60	CS 80	CS 110	CS 125	CS 160	CS 200	CS 260	CS 315
CAPACITY	TON	25	35	45	60	80	110	125	125	200	200	310
BED SIZE	MM	680x300 x70	800x400 x70	850x440 x80	900x500 x80	1000x600 x110	1150x600 x110	1150x600 x110	1250x760 x160	1250x860 x160	1500x860 x160	1600x900 x180
STROKE FIXED	MM	70 30	70 40	80 50	120 60	150 70	180 80	180 80	200 90	200 100	200 100	250 150
SHUT HEIGHT	MM	195 215	220 235	250 265	310 340	340 380	360 410	360 410	400 450	450 500	460 510	500 550
SLIDE	MM	50	55	60	75	80	80	80	100	100	110	120
SLIDE FACE OPNG	MM	38.10	38.10	38.10	50	50	50	50	65	65	65	65
BED OPENING	MM	240x120	240x140	300x150	320x160	360x180	400x200	440x220	440x220	440x220	480x240	520x260
TABLE HEIGHT FROM FLOOR	MM	800	790	800	795	840	840	840	910	910	1030	1030
STROKES PER MINUTE	SPM	110	85	75	65	65	50	50	35	35	35	30
MOTOR	HP	5	5	7.5	7.5	10	10	15	20	25	30	40

Technical Details

Versatile Applications, Lasting Performance

Ideal for industrial environments, the C Frame Hydraulic Press is engineered for efficiency and precision. Whether used in metalworking, assembly, or maintenance, its sturdy metal construction and variety of available sizes guarantee compatibility with a wide range of tasks. Supported by a comprehensive warranty, this machine remains a reliable choice for manufacturers and suppliers seeking sustained productivity.

Manufactured and Exported from India

As a prominent manufacturer, supplier, and exporter in India, we ensure that each C Frame Hydraulic Press reflects industry-leading standards. Our commitment is to deliver quality machines tailored to international specifications, making them suitable for both domestic and global markets. With a focus on excellence, our presses support businesses in achieving robust operational outcomes.

FAQ's of C Frame Hydraulic Press:

Q: How does a C Frame Hydraulic Press operate in industrial environments?

A: The C Frame Hydraulic Press uses hydraulic force to perform forming, bending, pressing, and straightening tasks efficiently. Its open-frame structure allows easy access to the work area, which is especially useful for industrial-scale production and maintenance jobs.

Q: What are the primary applications of the C Frame Hydraulic Press?

A: This press is used extensively in metalworking, assembly, punching, straightening, and component pressing. Its adaptability and variable sizes make it ideal for a wide range of industrial applications requiring precision and force.

Q: When should a manufacturer choose a C Frame over other hydraulic press designs?

A: A manufacturer should opt for a C Frame Hydraulic Press when easy side access, straightforward maintenance, and flexibility in operation are prioritized. Its open design is particularly suited for tasks requiring frequent tool changes and handling of large or irregularly shaped workpieces.

Q: Where are these hydraulic presses manufactured and exported from?

A: The C Frame Hydraulic Presses are manufactured, supplied, and exported from India, complying with international quality standards for industrial machinery.

Q: What is the usual process for acquiring the appropriate size of C Frame Hydraulic Press?

A: To select the right size, clients can consult with the manufacturer or supplier to specify their application needs and production volume. Different sizes are available to ensure compatibility with a variety of industrial tasks.

Q: How does the warranty benefit the users of the C Frame Hydraulic Press?

A: The warranty provides users with assurance covering potential defects or issues, ensuring reliable operation and support throughout the warranty period. This enhances productivity and reduces downtime in industrial environments.
