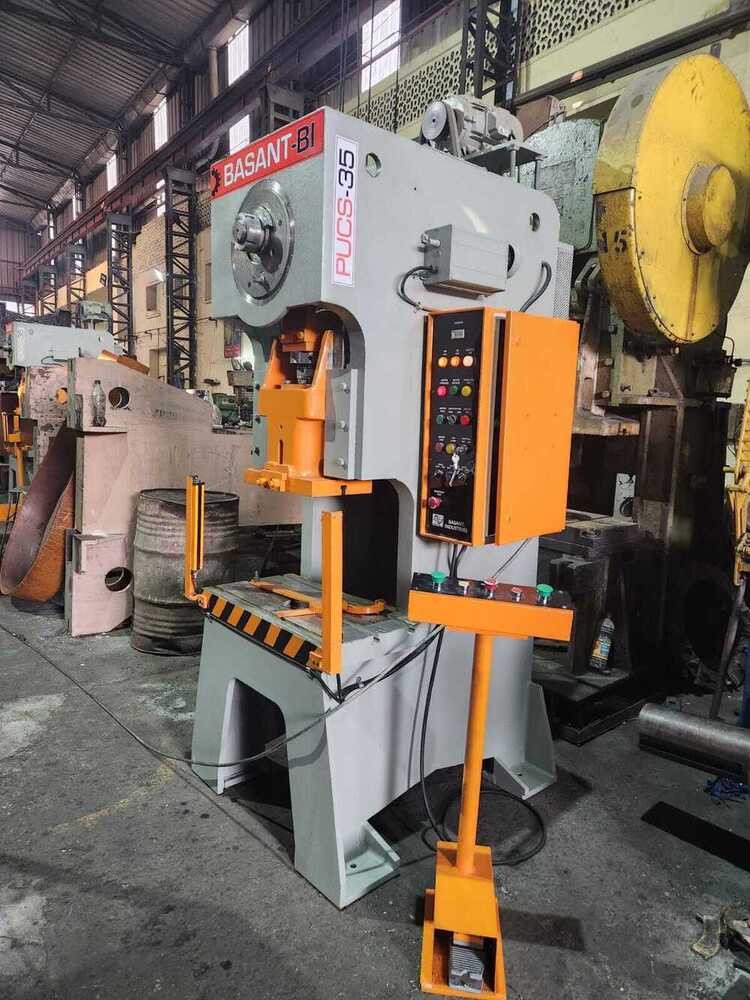

C Frame Cross Shaft Press

Name: C Frame Cross Shaft Press
Brand: BASANT INDUSTRIES
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

C Frame Cross Shaft Press Specification

Usage
Industrial

Material
Metal

Power
7.5 kW

Voltage
220-440 Volt (v)

Product Type
C Frame Cross Shaft Press

Dimension (L*W*H)
2100 mm x 1200 mm x 2500 mm

Application
Sheet Metal Forming, Punching, Stamping

Accessories
Control Panel, Foot Switch, Safety Guard

Warranty
Yes

Frame Type
C-Frame

Bed Size
1000 mm x 600 mm

Shut Height
350 mm

Stroke Per Minute (SPM)
35

Color
White and Yellow

Press Capacity
80 Ton

Slide Adjustment
60 mm

Ram Stroke
110 mm

Automation Grade
Semi-Automatic

C Frame Cross Shaft Press Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA)

Supply Ability
10 Units Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About C Frame Cross Shaft Press

Specification

TYPE	SERIES	CS 25	CS 35	CS 45	CS 60	CS 80	CS 110	CS 125	CS 160	CS 200	CS 260	CS 315
CAPACITY	TON	25	35	45	60	80	110	125	125	200	200	310
BED SIZE	MM	680x300 x70	800x400 x70	850x440 x80	900x500 x80	1000x600 x110	1150x600 x110	1150x600 x110	1250x760 x160	1250x860 x160	1500x860 x160	1600x900 x180
STROKE FIXED	MM	70 30	70 40	80 50	120 60	150 70	180 80	180 80	200 90	200 100	200 100	250 150
SHUT HEIGHT	MM	195 215	220 235	250 265	310 340	340 380	360 410	360 410	400 450	450 500	460 510	500 550
SLIDE	MM	50	55	60	75	80	80	80	100	100	110	120
SLIDE FACE OPNG	MM	38.10	38.10	38.10	50	50	50	50	65	65	65	65
BED OPENING	MM	240x120	240x140	300x150	320x160	360x180	400x200	440x220	440x220	440x220	480x240	520x260
TABLE HEIGHT FROM FLOOR	MM	800	790	800	795	840	840	840	910	910	1030	1030
STROKES PER MINUTE	SPM	110	85	75	65	65	50	50	35	35	35	30
MOTOR	HP	5	5	7.5	7.5	10	10	15	20	25	30	40

Superior Performance and Versatility

The C Frame Cross Shaft Press delivers consistent results across multiple industrial applications. Its high press capacity and customizable settings make it suitable for sheet metal forming, punching, and stamping, ensuring adaptability in manufacturing processes.

Safety and User-Friendly Operation

Engineered for semi-automatic functioning, this press incorporates safety guards, a control panel, and a foot switch. Operators benefit from intuitive controls and protective features that prioritize workplace safety and reduce operational risks.

Durable Construction and Warranty

Built using quality metal, the press boasts a sturdy C-frame design. It comes in a distinctive white and yellow finish and offers a comprehensive warranty, reflecting the manufacturer's commitment to product excellence and customer support.

FAQ's of C Frame Cross Shaft Press:

Q: How does the C Frame Cross Shaft Press enhance productivity in sheet metal forming?

A: Its 80-ton press capacity, rapid stroke rate (35 SPM), and adjustable slide mechanism enable swift and precise operations, boosting throughput in sheet metal forming tasks.

Q: What safety features are included in this press?

A: The machine is equipped with a safety guard, control panel, and foot switch, ensuring operator protection and easy management during semi-automatic operation.

Q: When is it advisable to use the slide adjustment feature?

A: Slide adjustment (up to 60 mm) should be employed when processing different material thicknesses or altering tool settings, allowing for tailored stamping or punching outcomes.

Q: Where is this press manufactured and supplied?

A: Manufactured, exported, and supplied from India, it is available for industrial customers worldwide seeking sheet metal processing solutions.

Q: What is the typical process for operating this press?

A: Operators place the material on the bed, set parameters via the control panel, and activate the machine using the foot switch. The semi-automatic cycle ensures efficient and controlled stamping or punching.

Q: What are the main benefits of choosing a C-Frame design for this press?

A: The C-frame provides convenient access for material handling, allows for larger workpieces, and supports versatile sheet metal operations while optimizing floor space.

Q: Which accessories are supplied with the press, and how do they contribute to its usage?

A: Accessories include a control panel, foot switch, and safety guard. These components facilitate easy operation, enhance safety, and streamline workflow during industrial applications.
